Optical Transceivers
OPTICAL TRANSCEIVERS
1310nm QSFP-DD 400G ZR8 80KM
Class1CEFCCROHS
QSFP 100G 1310nm
10Km, SM LR

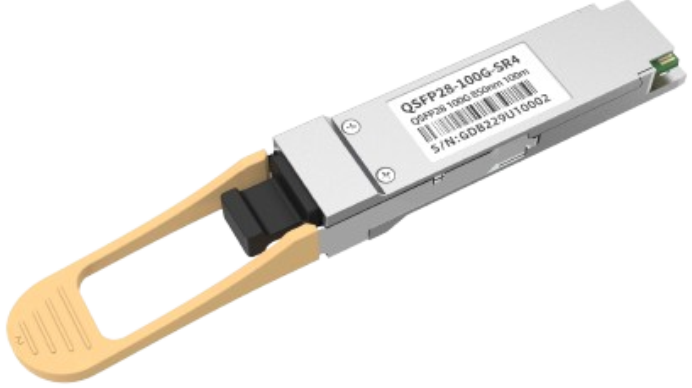

QSFP28 100G, 850nm
150M, MM SR

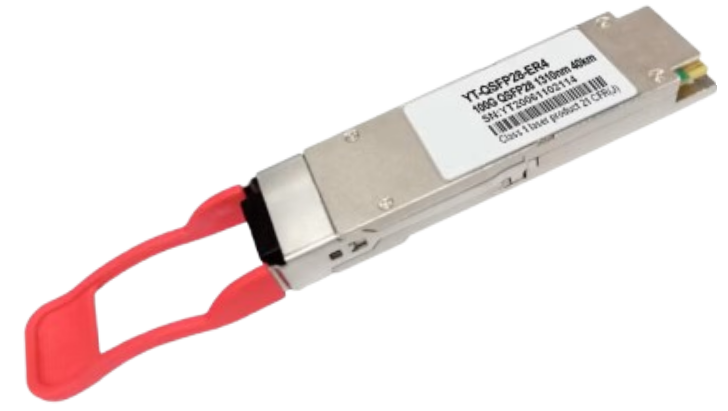

QSFP28 100G, 1310nm
40KM, SM ER
| Type | Data Rate | Wavelength (nm) | Fiber Type | Distance | Tx Power (dBm) | Rx Sens (dBm) | Temperature (°C) |
|---|---|---|---|---|---|---|---|
| SR4 | 100G | 850 | MMF/MPO | 100m | -6.4~+2.5 | -5.6 | -40 ~ +85 |
| LR4 | 100G | 1310 | SM | 10Km | -4.5~+4.6 | -13.98 | -40 ~ +85 |
| ER4 | 100G | 1310 | SM | 40Km | -2.4~+6.5 | -24.95 | -40 ~ +85 |
| ZR4 | 100G | 1310 | SM | 80Km | +7.2~+12.7 | -30.0 | -40 ~ +85 |
| BiDi 10D | 100G | 1291/1311 | SM | 10Km | -1.4~+4.5 | -7.6 | -40 ~ +85 |
| LR4 | 100G | 1310 | SM | 20Km | -2.5~+5.4 | -14.99 | -40 ~ +85 |
| BiDi 20D | 100G | 1291/1311 | SM | 20Km | -0.2~+6.0 | -8.0 | -40 ~ +85 |
| BiDi 40D | 100G | 1291/1311 | SM | 40Km | +6.0~+9.5 | -24.0 | -8 ~ +11 |
| BiDi 80D | 100G | 1291/1311 | SM | 80Km | +8.0~+12.7 | -28.0 | -40 ~ +85 |

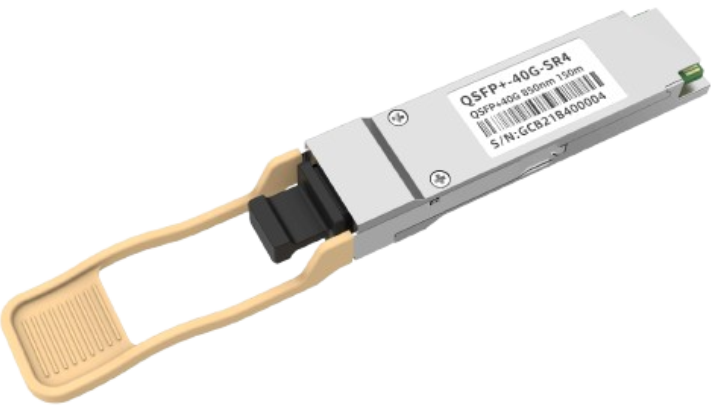

QSFP+ 40G 850nm
100m, MM SR4

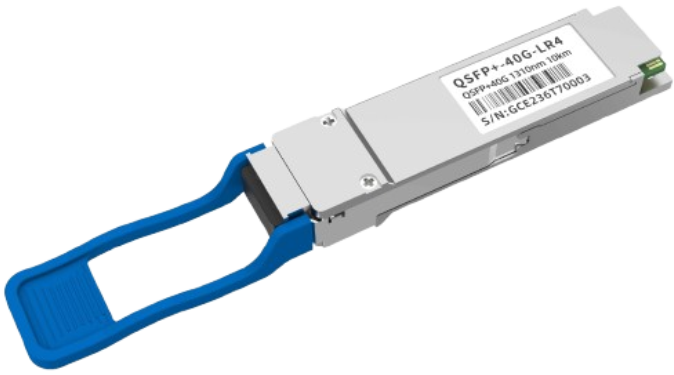

QSFP+ 40G 1310nm
10Km, SM LR4

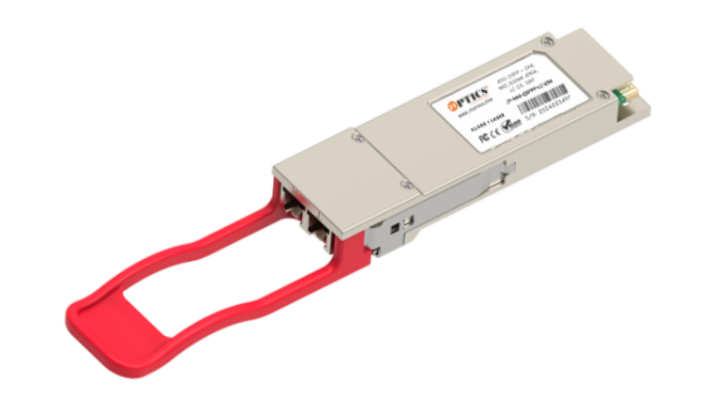

QSFP+ 40G, 1310nm
40KM, SM ER4
| Type | Data Rate | Wavelength (nm) | Fiber Type | Distance | Tx Power (dBm) | Rx Sens (dBm) | Temperature (°C) |
|---|---|---|---|---|---|---|---|
| SR4 | 40G | 850 | MMF/MPO | 100m | (-6.0~+2.4) | (-9.0) | (-40 ~ +85) |
| LR4 | 40G | 1310 | SM | 10Km | (-4.0~+3.6) | (-11.0) | (-40 ~ +85) |
| LR4 | 40G | 1310 | SM | 20Km | (-3.0~+4.2) | (-15.00) | (-40 ~ +85) |
| ER4 | 40G | 1310 | SM | 40Km | (+2.0~+7.2) | (-25.0) | (-40 ~ +85) |
| ZR4 | 40G | 1310 | SM | 60Km | (+4.0~+6.1) | (-27.0) | (-40 ~ +85) |
| ZR4 | 40G | 1310 | SM | 80Km | (+3.0~+8.2) | (-28.0) | (-40 ~ +85) |

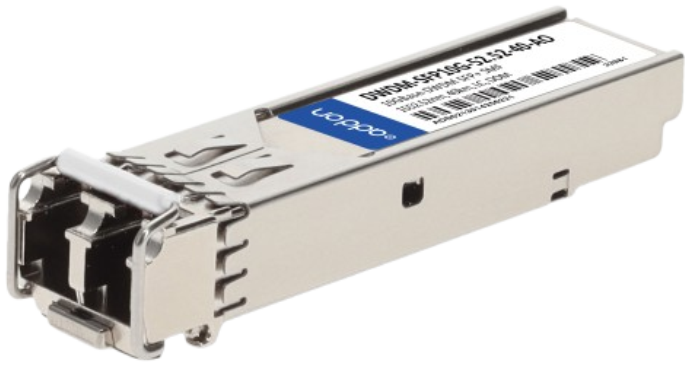

SFP+ 10GBase-DWDM-40
SFP+ 10GBase-DWDM-80
| Type | Data Rate | Wavelength (nm) | Fiber Type | Distance | Tx Power (dBm) | Rx Sens (dBm) | Temperature (°C) |
|---|---|---|---|---|---|---|---|
| ZR | 10G | 1550 | SM Duplex | 80Km | (+1.0~+4.0) | (-28.0) | (-40 ~ +85) |
